NextGen External Disconnect Enclosures

-0.075” carbon steel

-Seams continuously welded and ground smooth

-Flange trough collar around all sides of door opening

-Concealed hinges

-Black zinc die cast coinproof / padlocking handle

-2-point latching mechanism

-Provisions for subplate

-Pour in place oil & water-resistant gasket

-Ground studs on door and body

-Provisions for flange mount disconnect on right

-Mechanical defeater (MDV)

-Hole plug included for unused provisions for interlock

-Meets UL 508A and NFPA 79

Optional Accessories

-Subplate, Galvanized Sub-Plate

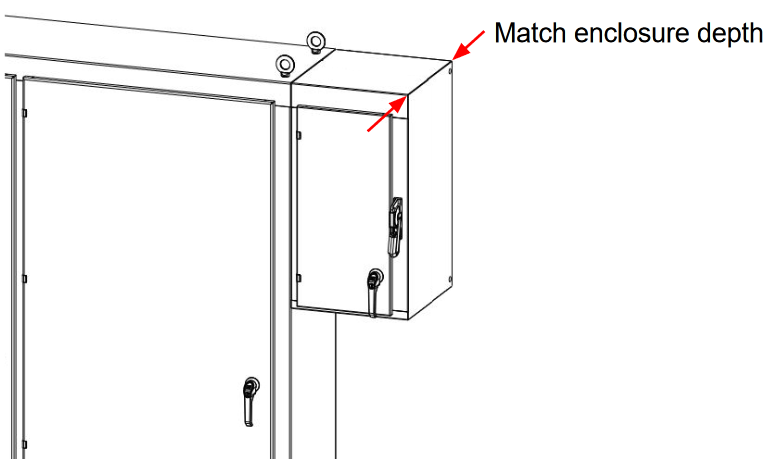

Standard for the external disconnects will be to match the depth of the main enclosure.

Standard for the external disconnects will be to match the depth of the main enclosure.

External disconnects may be added to other flange mounted disconnect enclosure types of different depths making sure it is installed flush with the top and front of the main enclosure.

External disconnects may be added to other flange mounted disconnect enclosure types of different depths

Optional Accessories Exceeding What’s Required

Electrical interlock offered in 24VDC, 120-230VAC or 460VAC

Electrical interlock

Wire the power supply so when the disconnect is turned off the main enclosure door is unlocked.

Mechanical Interlock

SCE-NEXDMLK Interlock Kit 30 to 600 Amp (NEXD & NEXR) Provides secondary mechanical interlock with main enclosure door. Requires tool to access at all times unless disconnect door is open.

Mechanical Interlock
